Titanium Weld Neck Flanges WNRF For High Temperature And High Pressure Piping

Name: Titanium Weld Neck Flanges WNRF For High Temperature And High Pressure Piping
Brand: VOTECH
Price: 1 USD

Quality Titanium Weld Neck Flanges WNRF For High Temperature And High Pressure Piping for sale

Brand Name : VOTECH

Model Number : NPS 1/2-NPS 24

Certification : ASME,ANSI

Place of Origin : Shaanxi,China

Payment Terms : T/T,D/P,D/A,L/C,etc.

Supply Ability : 100ton/Month

Delivery Time : 7-15 Days

Packaging Details : Export Standard Wooden Case, or Can Be Customized

Material Designation : TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 etc

Size : NPS 1/2-NPS 24

OEM/ODM : Available

Pressure : Class150，Class300，Class600，Class900，Class1500，Class2500

Technics : Forged

Sealing Surface : RF,MFM,TG,FF,RJ

Contact Now

Titanium Weld Neck Flanges (WNRF) for High Temperature and High Pressure Piping

Titanium weld neck flanges excel in chemical, offshore, aerospace, and high-purity media transport applications. Precision-forged from high-quality titanium, these flanges offer exceptional corrosion resistance that ensures long-term structural integrity and sealing reliability in harsh environments, significantly reducing maintenance costs and extending equipment life.

Weld neck titanium flanges feature a round tube transition structure designed for welding to pipes. They are primarily used in high-pressure, high-temperature, or media-sensitive piping systems. The flared transition neck structure distances the weld from the sealing surface, reducing weld distortion and improving sealing performance. This design significantly enhances system sealing and long-term stability under demanding conditions.

Technical Specifications

Standard	ASME, ANSI
Material Designation	TA1, TA2, TA9, TA10, GR1, GR2, GR7, GR12, GR16, N5, N6, N7 etc
Size	NPS 1/2 - NPS 24
OEM & ODM	Available
Pressure	Class150, Class300, Class600, Class900, Class1500, Class2500
Technics	Forged
Sealing surface	RF, MFM, TG, FF, RJ
Type	Weld Neck Flange
Packaging	Export standard wooden case, or can be customized
Application	Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, food processing, and more

Class150 Dimensions (mm)

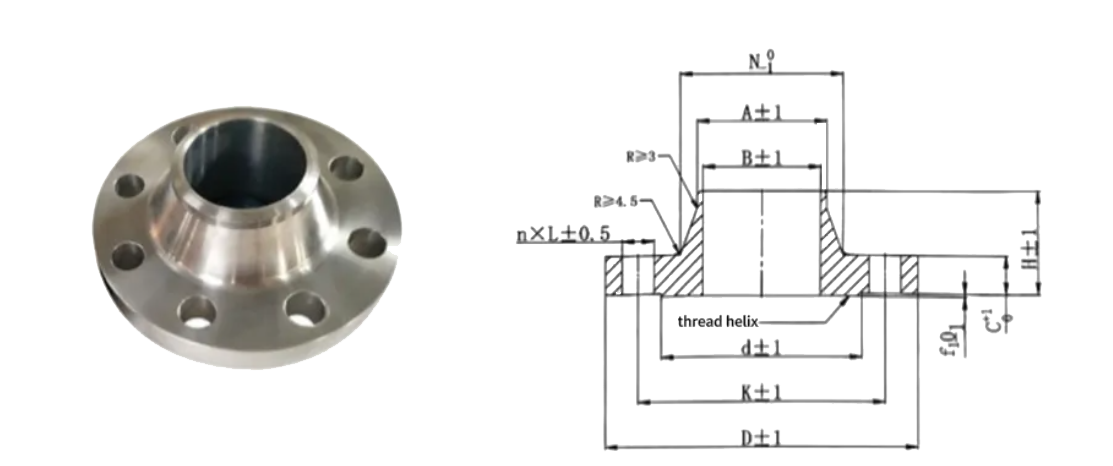

Titanium Weld Neck Flanges WNRF For High Temperature And High Pressure Piping

Nominal Dimension		Outside diameter A	Connection size					Flange thickness C	Flange neck big end N	Flange inner diameter B	Flange height H
DN	NPS	Outside diameter A	Flange outer diameter D	Diameter of center circle of bolt hole K	Bolt hole diameter L	Bolt Th	Number of bolt holes n(pc)	Flange thickness C	Flange neck big end N	Flange inner diameter B	Flange height H
15	1/2	21.3	90	60.3	16	M14	4	9.6	30	15.5	46
20	3/4	26.9	100	69.9	16	M14	4	11.2	38	21	51
25	1	33.7	110	79.4	16	M14	4	12.7	49	27	54
32	1-1/4	42.4	115	88.9	16	M14	4	14.3	59	35	56
40	1-1/2	48.3	125	98.4	16	M14	4	15.9	65	41	60
50	2	60.3	150	120.7	18	M16	4	17.5	78	52	62
65	2-1/2	76.1	180	139.7	18	M16	4	20.7	90	66	68
80	3	88.9	190	152.4	18	M16	4	22.3	108	77.5	68
100	4	114.3	230	190.5	18	M16	8	22.3	135	101.5	75
125	5	139.7	255	215.9	22	M20	8	22.3	164	127	87
150	6	168.3	280	241.3	22	M20	8	23.9	192	154	87
200	8	219.1	345	298.5	22	M20	8	27.0	246	203	100
250	10	273	405	362.0	26	M24	12	28.6	305	255	100
300	12	323.9	485	431.8	26	M24	12	30.2	365	303.5	113
350	14	355.6	535	476.3	30	M27	12	33.4	400	—	125
400	16	406.4	595	539.8	30	M27	16	35.0	457	—	125
450	18	457	635	577.9	33	M30	16	38.1	505	—	138
500	20	508	700	635.0	33	M30	20	41.3	559	—	143
600	24	610	815	749.3	36	M33	20	46.1	663	—	151

Frequently Asked Questions

1. What are the outstanding performances of titanium weld neck flange in terms of corrosion resistance?

Titanium weld neck flanges have extremely strong resistance to corrosive media such as seawater and chloride ions. Their corrosion resistance far exceeds that of stainless steel and carbon steel, making them especially suitable for harsh environments such as marine and chemical industries.

2. Do titanium weld neck flanges need additional anti-rust measures?

No need. Titanium weld neck flanges can be used for a long time without coating or cathodic protection, avoiding the risk of rust and significantly reducing maintenance requirements.

Our Advantages

Strict Quality: Rigorous quality control measures with ASME, JIS, DIN, GB, GOST standards

Modern Facilities: Advanced factory with multiple titanium metal production lines

Secure Packaging: Carefully packed in wood cabins or trays for maximum protection

Experienced Team: Years of professional knowledge in titanium manufacturing

Comprehensive Service: Customized solutions and fast lead times

Customer Focus: Flexible payment options and dedicated support
